A Perfect Fusion of Luxury, Functionality, and Sustainability

KALCO

RUBINO

Alu-Wood Inward Opening Window

RUBINO

We are proud to present the KALCO RUBINO Aluminium-Clad Wood Casement Windows, a revolutionary blend of luxury, functionality, and sustainability. Designed for modern homes and commercial spaces, these windows elevate the standard of living with their innovative features and timeless aesthetics.

Features

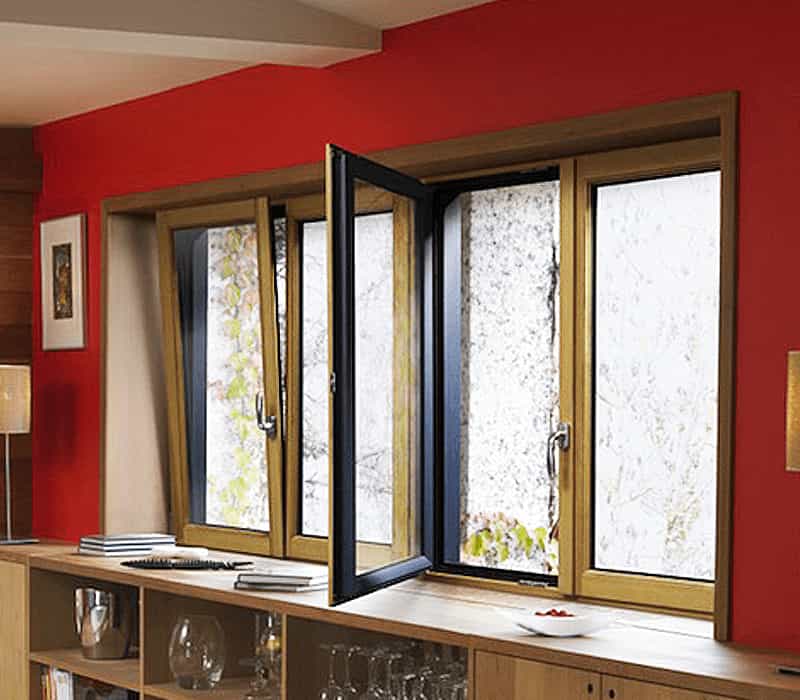

Tilt-n-Turn Operating System

Our RUBINO windows come equipped with the advanced Tilt-n-Turn system, offering unparalleled versatility:

- Dual Functionality: Tilt the window inward for controlled ventilation or fully open it for maximum airflow and accessibility.
- Enhanced Security: Enjoy fresh air without compromising safety.
- Energy Efficiency: Maintain a comfortable indoor environment with precise control over ventilation.

Materials

Our RUBINO series is crafted using the finest materials to ensure durability and superior performance:

Aluminium Frame:

- - Material Grade: 6060 Aluminium with TA16 status for exceptional strength and resistance to corrosion.
  - Precision Standards: Manufactured under UNI 3879 standards for consistency and reliability.

Wood:

FSC-certified solid wood, sourced sustainably and of premium quality, enhances the aesthetic appeal.
Treated with double protective layers for long-lasting durability and termite resistance.

Colour Options

We offer an extensive range of finishes and textures to complement any architectural style:

- Powder Coating: Select from a wide array of RAL colors to personalize your windows.
- Anodizing: Choose a natural anodized finish for an elegant and contemporary look.
- Wood Textures: Multiple wood finish options allow you to create a warm and inviting atmosphere.

Insect Screen

For added convenience, we offer an optional KALCO Pleated wire mesh insect screen to keep pests out while maintaining airflow. Perfect for warm climates or those seeking a natural ventilation solution.

Product Specifications

Feature	Specification
Operational Type	Inside Openable, Tilt-n-Turn
Fixed Frame	56.7 mm section
Openable Wing	76.2 mm section
Glass Pane Installation	Supports up to 23 mm thickness
Sealing	Open joint seal with 5.5 cm² pre-cavity

Window Performance

- Thermal Insulation (Uw): Achieves 1.8 W/(m²K) under EN ISO 10077-2 standards for optimal energy efficiency.
- Air Permeability: Rated Class A3 (EN 12207) to ensure minimal air leakage.
- Water Tightness: Rated Class E4 (EN 12208) for resistance against water ingress.
- Sound Insulation: Offers noise reduction of 32dB to 38dB for a quieter living environment.
- Wind Load Resistance: Rated Class V3 (EN 12210) for stability in high wind conditions.

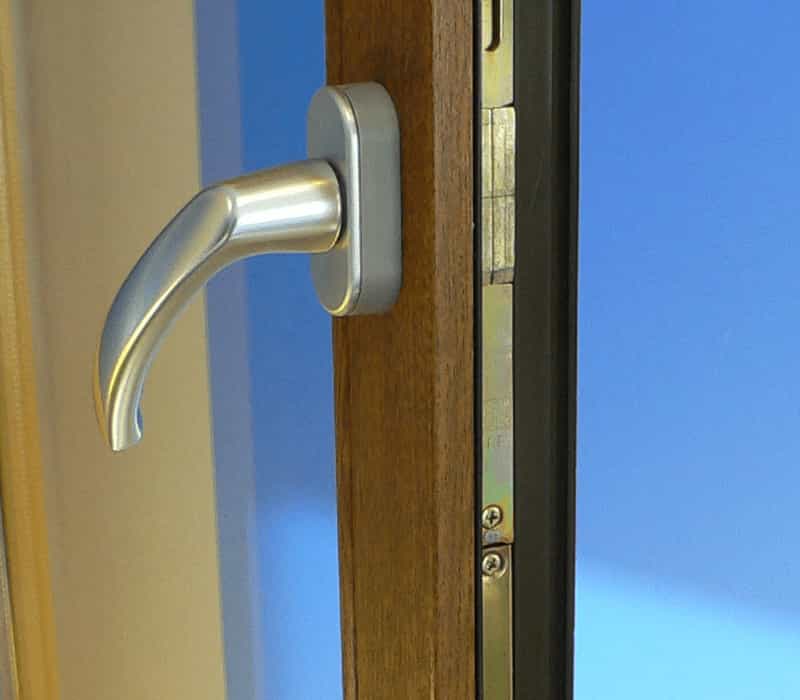

Premium Hardware and Accessories

Every RUBINO window is built with high-quality hardware and accessories for seamless functionality:

- Imported Components: Ensuring reliable and smooth operation for years.
- EPDM Sealing: Co-extruded seals provide superior insulation and weather resistance.
- Heavy-Duty Bearings: Designed for durability, even in high-use scenarios.

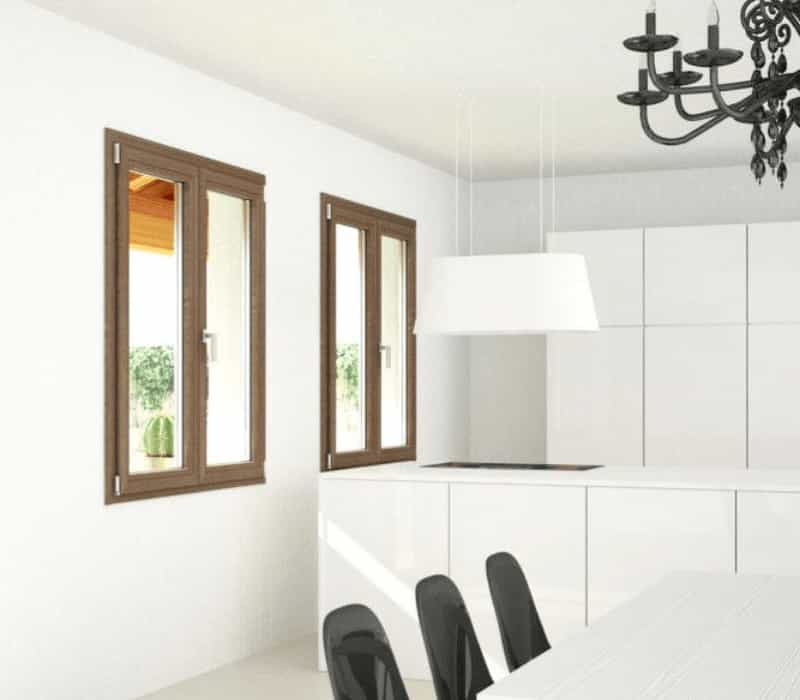

Applications

The RUBINO Casement Window is designed to enhance specific spaces with its unique combination of style, functionality, and performance. It is suited for:Bedrooms or Living Rooms, Kitchen, or Exclusive Office Space.

Let us Elevate Your Space

Upgrade your home or office with the finest in window design and functionality. The KALCO RUBINO Aluminium-Clad Wood Casement Windows deliver everything you need: durability, luxury, and versatility.
